Payment Terms: L/C, T/T, D/P, Western Union, Money Gram
Standard: ANSI/DIN/ISO/BS
Trademark: SMCC or OEMConstruction: Conveyor Chains with Rollers
Material: 40Mn, 45Mn, Stainless Steel304
Special Treatment: Heat Treatment, Polishing
Application: Food and Beverage Industry, Wooden Machinery, etc
Package: Carton, Pallet, Wooden Box, or According to Customer′s Request
Port: Qingdao, China
Production Capacity: 100000PCS/Month

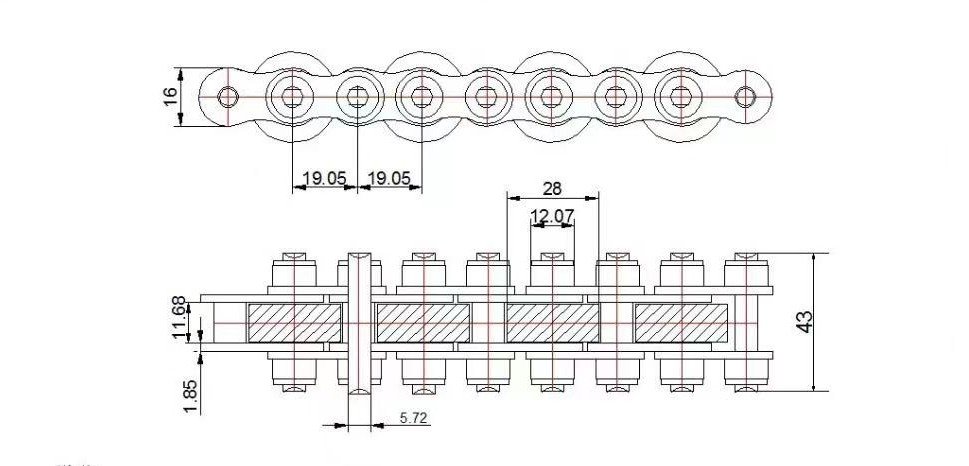

| ITEM | PITCH | ROLLER | WIDTH BETWWEN | PIN | PIN | PLATE | ULTIMATE | AVERAGE | ||
| DIAMETER | INNER PLATES | DIAMETER | LENGTH | DIMENSION | TENSULE STRENGTH | TENSILE STRENGTH | ||||
| P | d1 | d8 | b1 | d2 | L | h2 | t/T | Q | Q0 | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/Ibf | kN | |
| 12BS-43-C28 | 19.05 | 12.07 | 28 | 11.68 | 5.72 | 43 | 16 | 1.85 | 29.0/6591 | 31.7 |
Large rollers can make the job a lot easier for a conveyor chain. There are two types of large rollers, the R-roller and the S-roller. The S-roller is best suited for shorter conveyors, while the R-roller is ideal for long conveyors. There are also special attachments that can help you achieve the maximum performance from your conveyor chain.
These chains are designed for heavy-duty applications. They are a great choice for production facilities that need to move large quantities of goods quickly. They are rugged, impact-resistant, and can handle totes, bins, racks, and crates. They are especially effective in food production, citrus processing, and other industries that require high-speed movement of goods.
Conveyor Chains with Rollers - Double Speed Chain 12BS-43-C28
