In mechanical transmission systems, chain tension directly impacts equipment stability and operational safety. Recently, standardized procedures for chain installation and tensioning techniques have been systematically reviewed, clarifying adjustment standards and potential risks associated with abnormal tension. This initiative enhances transmission efficiency, extends equipment lifespan, and provides technical guidance for maintaining industrial machinery, motorcycles, and automated systems.
I. How to Adjust Chain Tension During Installation? Core Methods and Operational Steps
Adjusting tension during chain installation is critical for ensuring proper transmission system operation. Based on equipment type and structural differences, the following three primary adjustment methods are employed:
Center Distance Adjustment Method: Suitable for transmission systems with adjustable structures. Loosen fixing bolts and move sprockets along slotted holes or slide rails to alter center distance. For excessive slack, move sprockets away from each other. Verify adjustments in real-time using visual inspection or measurement methods. Some equipment adjusts center distance by adding or removing shims at sprocket mounting points—reduce shim thickness for slack, increase for tightness. This method is common in motorcycle chain drives.
Shim Adjustment Method: Commonly used for fixed installations. Thickness reduction increases center distance to tighten the chain, while shim addition alleviates excessive tension. Post-adjustment verification of smooth chain operation is required. This method is prevalent in internal engine timing chains or small mechanical transmission systems.

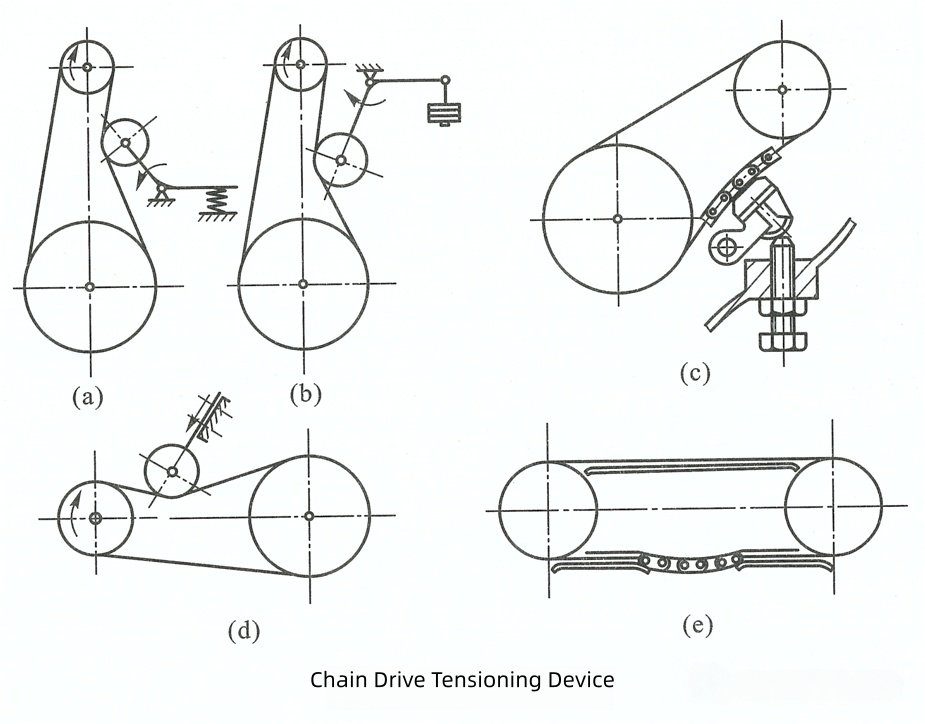

Tensioning Device Method: Suitable for complex conditions where center distance adjustment is impractical. Spring-loaded, hydraulic, or pneumatic tensioners automatically compensate for chain elongation to maintain constant tension. For example, automatic tensioners coordinate with pressure sensors and control systems to monitor and adjust tensioner pulley position in real-time, ensuring the chain remains in optimal condition.
II. How to Determine Proper Tension? Visual Inspection and Measurement Methods
Visual inspection serves as a preliminary method for assessing chain tension. For horizontally or near-horizontally mounted chains, align your line of sight parallel to the chain and observe the sag arc between the two sprockets. A sag within 1%-3% of the center distance is considered normal. For instance, with a center distance of 500mm, a sag between 5-15mm falls within the acceptable range. After equipment startup, observe whether the chain engages smoothly during operation. The absence of noticeable jumping, vibration, or signs of disengagement from the sprockets further validates proper tension.
Measurement methods enable precise assessment. These include:
- Sag measurement: Apply a specified force at the chain's midpoint and measure its vertical displacement;
- Tension gauge measurement: Suitable for high-precision equipment, directly reading tension values;
- Operational observation: Start the equipment to observe whether the chain runs smoothly, with no jumping or abnormal noises.
III. What Problems Does Excessive Chain Tension Cause? Increased Load and Accelerated Wear
Excessive chain tension significantly increases the operational burden on the transmission system. The primary hazard is accelerated wear. Excessive tension sharply elevates friction and contact stress between the chain and sprocket teeth, leading to abnormal wear on chain links, rollers, and sprocket profiles, drastically shortening component lifespan.
Excessive tension accelerates wear on both the chain and sprockets. Increased contact pressure intensifies friction between rollers, pins, and tooth surfaces, shortening their service life. Simultaneously, bearings endure additional radial forces, predisposing them to premature failure.
Furthermore, an overly tight chain increases power loss. The transmission system expends more energy overcoming excessive internal friction, reducing overall transmission efficiency and potentially causing motor overload and overheating. Furthermore, excessive tension increases bearing loads, accelerating damage to bearings supporting sprockets and potentially generating abnormal noise and vibration.
In extreme cases, excessive tension may cause chain breakage. Under high-speed operation or impact loads, chains with excessive preload experience stress concentration, posing a risk of sudden failure that seriously threatens equipment and personnel safety.
IV. What Problems Does Chain Slackness Cause? Risk of Tooth Skipping and Transmission Failure
Excessively loose chains cause unstable transmission and tooth skipping. Particularly during acceleration or sudden load changes, the chain may disengage from the sprocket teeth, resulting in power interruption or valve timing misalignment.
Timing chain slack can trigger severe mechanical failures. Symptoms include engine noise, power loss, and increased fuel consumption. In extreme cases, valve-piston collisions may occur, causing cylinder block damage or even engine failure.
A loose chain also generates abnormal noise and vibration. This not only compromises driving or operating comfort but may also cause sprocket deformation and fastener loosening due to sustained impact, further escalating failure risks. Prolonged operation in an excessively slack state leads to uneven wear between chain and sprockets, potentially causing secondary damage as the chain strikes other components.
V. Technical Specifications and Industry Trends: From Manual Adjustment to Intelligent Control
Achieving and maintaining proper chain tension requires standardized procedures and continuous monitoring. After installation or adjustment, verification must be conducted by measuring slack or using a tension gauge. During equipment operation, establishing a regular inspection system is recommended. This should combine observing operational status, measuring parameter changes, and comparing against original records to promptly detect tension deviations.
It is particularly important to note that tension requirements are not static. For heavy-duty applications, frequent starts/stops, reversing operations, or near-vertical drive configurations, the allowable slack side sag should be more stringent (i.e., appropriately reduced). When installing automatic tensioning devices, care must also be taken to avoid persistent over-tensioning due to improper adjustment.
This technology has been applied in equipment such as electric chainsaws and industrial conveyors, effectively eliminating temperature-induced interference in tension measurements and enhancing feedback accuracy. In the future, with the widespread adoption of IoT and predictive maintenance systems, remote monitoring and automated alerts for chain tension status are anticipated, providing stronger safeguards for equipment safety.
