Basic Info

Model NO.

OPTIPOW105OPTIPOW135

Optipow Valve Structure

Pilot Membrane

Power Supply

DC Solenoid Valve

Usage

Air Filter, Dust Cleaning

Standard

DIN,ISO

Application

Industrial Usage

Used For

Industrial Dust Filter

Trademark

OPTIPOW

Specification

3" and 4" Air Filter

Design static pressure

15 bar (1500 kPa)

Design temperature

-60°C-150 °C

Operating pressure

< 6 bar

Operating pressure variation

3 bar unlimited nos

Operation temperature

50 °C


Product Description

Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse Valve,Pulse Jet Collector,Jet Pulse Filter,Pulse Jet Valve

The compact pulse valve for the Optipulse fabric filters of different types.

is a result of many years of experiences within the fabric filter technology area.
is quick acting with high efficiency.
has small dimensions, the figure after the name stands fir the diameter of the plunger.
is primarily designed to be used in combination with circular pressure tank.
is easy to install and make service to.
has a very robust design, designed for normal use at air pressure up to 600kPa (6bar).
Normal max operating temperature (compact pulse valve) 50°C.

OPTIPOW SPECIFICATION AND SPARE PARTS LIST

Air Filter OPTIPOW135

Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd.

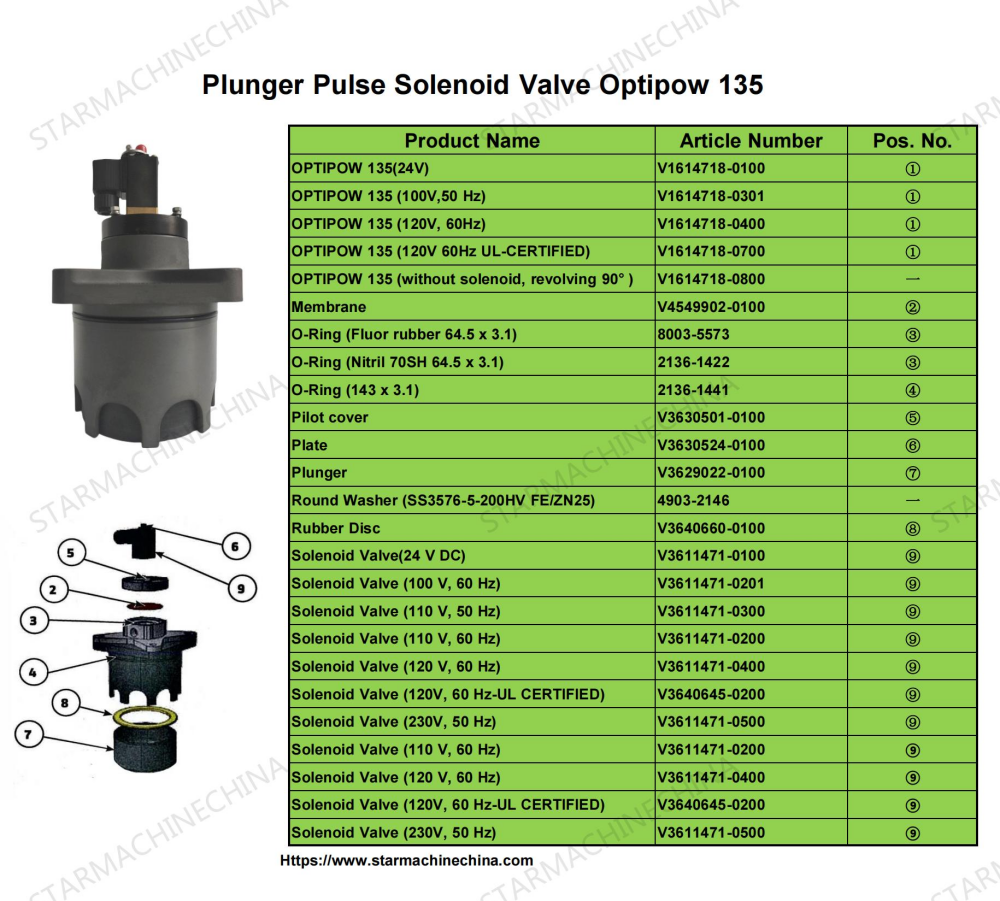

Plunger Pulse Solenoid Valve Optipow 135

OPTIPOW 135 (24V) V1614718-0100
OPTIPOW 135 (100V, 50 Hz) V1614718-0301
OPTIPOW 135 (120V 60Hz) V1614718-0400
OPTIPOW 135 (120V 60Hz UL-CERTIFIED) V1614718-0700
OPTIPOW 135 (without solenoid, revolving 90° C) V1614718-0800
Membrane V4549902-0100
O-Ring (Fluor rubber 64,5 x 3) 8003-5573
O-Ring (Nitril 70SH 64,5 x 3) 2136-1422
O-Ring (114,5x3) 2136-1441
Pilot cover V3630501-0100
Plate V3630524-0100
Plunger V3629022-0100
Round washer (SS3576-5-200HV FE/ZN25) 4903-2146
Rubber disc V3640660-0100
Solenoid valve (24 V DC ) V3611471-0100
Solenoid valve (100 V, 60 Hz) V3611471-0201
Solenoid valve (110 V, 50 Hz) V3611471-0300
Solenoid valve (110 V, 60 Hz) V3611471-0200
Solenoid valve (120 V, 60 Hz) V3611471-0400
Solenoid valve (120 V, 60 Hz-

Air Filter OPTIPOW105

Plunger Pulse Solenoid Valve Optipow 105

Piston type pulse valve V1585320
Piston type pulse valve V3630501
OPTIPOW 105 (24 VDC ) V1617803-0100
OPTIPOW 105 (110V 60 Hz, 100V 50/60Hz) V1617803-0200
OPTIPOW 105 (110V, 50 Hz) V1617803-0300
OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400
OPTIPOW 105 (220V, 50 Hz) V1617803-0500
OPTIPOW 105 (UR-CERTIFIED 120V,60HZ) V1617803-0600
OPTIPOW 105 (without solenoid, revolving 90° C) V1617803-0800
Coupling set V3592382-0000
Membrane V4549902-0100
O-Ring (Fluor rubber 64,5 x 3) 8003-5573
O-Ring (Nitril 70SH 64,5 x 3) 2136-1422
O-Ring (114,5 x 3) 2136-1435
Pilot cover V3630501-0100
Plate V3630524-0100
Plunger V3630527-0100
Round washer (SS3576-10-200HV FE/ZN45 Erection details) 4903-2173
Rubber disc V3630530-0100
Rubber disc V3640661-0100
Screw (ISO4762-M10x30-8.8 ZN8C, Erection details) 2034-2495
Solenoid valve (24 V DC) V3611471-0100
Solenoid valve (100 V, 60 Hz) V3611471-0201
Solenoid valve (110 V, 50 Hz) V3611471-0300
Solenoid valve (110 V, 60 Hz) V3611471-0200
Solenoid valve (120 V, 60 Hz) V3611471-0400
Solenoid valve (120 V, 60 Hz - UL certified) V3640645-0200
Solenoid valve (230 V, 50 Hz) V3611471-0500



WHY CHOOSE US

1. Reliable Quality Assurance System;

2. Cutting-Edge Computer-Controlled CNC Machines;
3. Bespoke Solutions from Highly Experienced Specialists;
4. Customization and OEM Available for Specific Application;
5. Extensive Inventory of Spare Parts and Accessories;
6. Well-Developed Worldwide Marketing Network;
7. Efficient After-Sale Service System
Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd. The Air Cleaning valve service life can reach 1,000,000 times. Low temperature resistance -60 ° C and high temperature 150 ° C. Widely used in thermal power plant air purification and dust removal, glass factory dust removal, laboratory dust removal, and other industrial dust removal. We have a sales system and after-sales service system all over the world. Our goal is to continuously improve quality and continuously reduce costs, till customer satisfaction.
