DIN/ISO NO: 428

Bush Type: Curled

Pitch (mm): 12.700

Roller Diameter(mm): 8.51

Width Between Inner Plates (mm): 7.75

Pin Diameter(mm): 4.45

Plate Thickness (mm): 1.55

Average Tensile Strength: 17.8KN

DIN/ISO NO: 420

Bush Type: Curled

Pitch (mm): 12.700

Roller Diameter(mm): 7.77

Width Between Inner Plates (mm): 6.35

Pin Diameter(mm): 3.96

Plate Thickness (mm): 1.50

Average Tensile Strength: 16KN

DIN/ISO NO: 520

Bush Type: Curled

Pitch (mm): 15.875

Roller Diameter(mm): 10.14

Width Between Inner Plates (mm): 6.35

Pin Diameter(mm): 5.08

Plate Thickness (mm): 2.03

Average Tensile Strength: 26.5KN

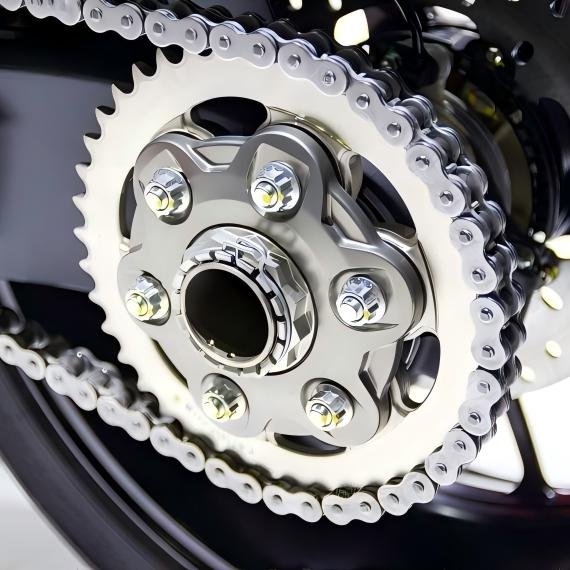

DIN/ISO NO: 528

Bush Type: Curled

Pitch (mm): 15.875

Roller Diameter(mm): 10.14

Width Between Inner Plates (mm): 7.94

Pin Diameter(mm): 5.08

Plate Thickness (mm): 2.03

Average Tensile Strength: 26.5KN

DIN/ISO NO: 530

Bush Type: Curled

Pitch (mm): 15.875

Roller Diameter(mm): 10.14

Width Between Inner Plates (mm): 9.35

Pin Diameter(mm): 5.08

Plate Thickness (mm): 2.03

Average Tensile Strength: 26.5KN

DIN/ISO NO: 630

Bush Type: Curled

Pitch (mm): 19.050

Roller Diameter(mm): 11.91

Width Between Inner Plates (mm): 9.50

Pin Diameter(mm): 5.94

Plate Thickness (mm): 2.40

Average Tensile Strength: 35.0KN

DIN/ISO NO: 428S

Bush Type: Solid

Pitch (mm): 12.700

Roller Diameter(mm): 8.51

Width Between Inner Plates (mm): 6.40

Pin Diameter(mm): 4.45

Plate Thickness (mm): 2.03 Inner/1.85 Outer

Average Tensile Strength: 20.8KN

DIN/ISO NO: 420S

Bush Type: Solid

Pitch (mm): 12.700

Roller Diameter(mm): 7.77

Width Between Inner Plates (mm): 6.40

Pin Diameter(mm): 3.96

Plate Thickness (mm): 1.60

Average Tensile Strength: 16.0KN
