CC600 Conveyor Chain

Min. Order: 100

Port: Qingdao, China

Production Capacity: 100000PCS/Month

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Multiple material options: Economic cast iron grade, heavy-duty cast steel grade, D600 hygienic plastic grade (for the food industry).

Application: logistics packaging, liquefied gas cylinder handling, timber processing, and automotive assembly, as well as warehouse sorting industries.

Package: Carton, Pallet, Wooden Box, or according to the customer's request

Basic Info

The CC600 chain is widely used in logistics packaging, liquefied gas cylinder handling, timber processing, automotive assembly, and warehouse sorting.

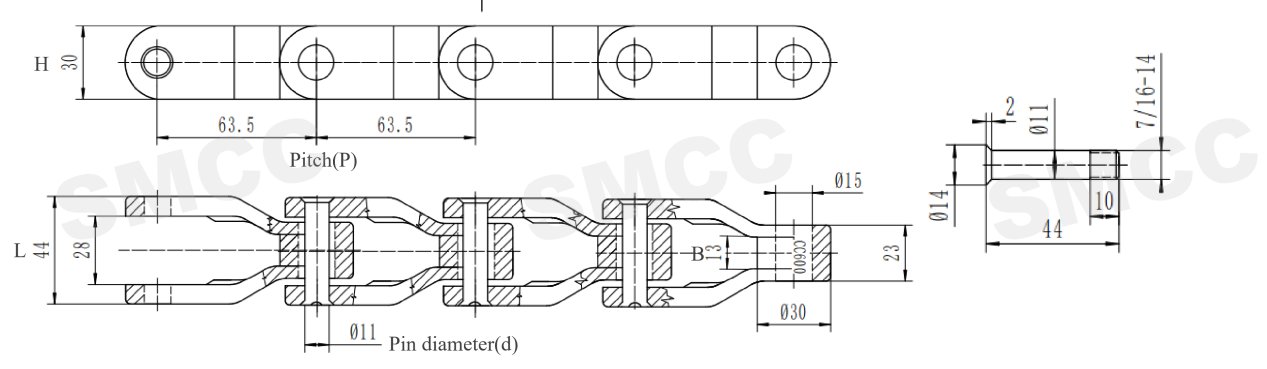

Chain No.	pitch	Pin length	Pin diameter	B	Plate dimension	average ultimate strength	maximum working load
Chain No.	p mm	L mm	d mm	mm	H mm	LBS	LBS
CC600	63.5	43	11	13	30	10000	1050

Product Description

CC600 is a standard cast iron side-flexing conveyor chain categorised under the CC series general carton conveying chains, with a pitch of 63.5 mm (2.5 inches). It adopts an integrated cast link paired with hardened steel pin shafts, supporting horizontal side bending and inclined conveying.

Core Technical Specifications

Parameter Item	Standard Value of CC600	Supplementary Remarks
Standard Pitch P	63.5 mm	2.5 inches, universal standard pitch for CC series
Minimum Breaking Load	65 KN	Tensile force equivalent to approx. 6,500 kg; load capacity doubles for dual-strand operation
Standard Working Load	1,200–1,800 kg (dual-strand)	For regular cartons & plastic crate conveying
Pin Shaft Diameter	11.1 mm	High wear resistance, resistant to elongation & deformation
Minimum Side Flex Radius	900 mm (3 ft)	Minimum usable radius down to 530 mm, but service life will be shortened
Permissible Operating Speed	≤15 m/min	General speed for warehouse & packaging production lines
Optional Surface Treatments	Black oxide finish, galvanisation, stainless steel pin shafts	Galvanised version for corrosion resistance in humid environments

Standard Applicable Industries

1. Sorting lines for cartons, plastic turnover crates and beverage packaging cases in warehouses;

2. Light-load transportation of timber & panels;

3. Double-layer sorting conveyors for small-scale warehouse logistics;

4. Ambient-temperature food packaging conveying (D600 plastic variant);

5. Light-duty auxiliary transportation of liquefied gas cylinders (Not suitable for frequent impact scenarios).

Core Product Advantages

1. Excellent versatility: Standardised matching sprockets, guide rails and accessory components, low replacement cost.

2. Low noise & smooth operation: Minimal fitting clearance between chain links, stable conveying without deviation over long distances.

3. Multiple material options: Economic cast iron grade, heavy-duty cast steel grade, D600 hygienic plastic grade (for the food industry).

Limitations

Forbidden for working conditions involving frequent dropping of gas cylinders or heavy impact loads; prolonged heavy impact may cause cracking of chain links.

CC600 VS F801 Core Model Selection Comparison Table

Comparison Item	CC600 Conveyor Chain	F801 Conveyor Chain
Product Positioning	Medium-load general-purpose carton conveyor chain	Heavy-duty industrial chain for high-impact applications
Pitch Size	63.5 mm	69.35 mm
Impact Resistance	Average; avoid impact loads	Excellent; top choice for frequent impact working conditions
Minimum Turning Radius	900 mm, suitable for wide, spacious production lines	316 mm, specially designed for compact filling equipment
Target Industries	Warehouse logistics, carton packaging, light industry	Liquefied gas plants, automotive assembly, and heavy industry
Cost & Price	Economical with low procurement cost	Premium heavy-duty model with a higher unit price

Our team is ready to provide expert support, competitive pricing, and customised recommendations based on your specific requirements. Share your application details with us, and we'll help you select the right product for maximum performance and long-term reliability.
