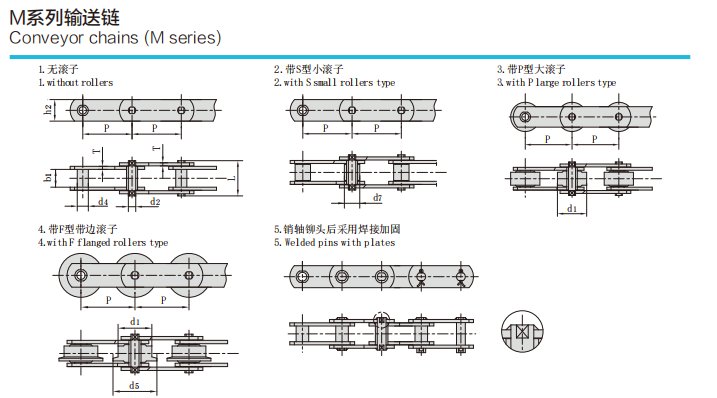

M series conveyor chain M56

SPECIFICATIONS OF M SERIES CONVEYOR CHAIN

ISO 链号 ISO Chain No.								节距 Pitch																									滚子直径 Roller diameter								套筒直径 Bush diameter
								P																									d1 max					d7 max	d5 max		d4 max
								mm																									mm					mm	mm		mm
M20								*40.0				50.0				63.0		80.0					100.0		125.0		160.0						25.0					12.5	32.0		9.0
M28								*50.0				63.0				80.0		100.0					125.0		160.0		200.0						30.0					15.0	36.0		10.0
M40								63.0				80.0				100.0		125.0					160.0		200.0		250.0						36.0					18.0	42.0		12.5
M56								*63.0				80.0				100.0		125.0					160.0		200.0		250.0						42.0					21.0	50.0		15.0
M80								80.0				100.0				125.0		160.0					200.0		250.0		315.0						50.0					25.0	60.0		18.0
M112								*80.0				100.0				125.0		160.0					200.0		250.0		315.0		400.0				60.0					30.0	70.0		21.0
M160								*100.0				125.0				160.0		200.0					250.0		315.0		400.0		500.0				70.0					36.0	85.0		25.0
M224								*125.0				160.0				200.0		250.0					315.0		400.0		500.0		630.0				85.0					42.0	100.0		30.0
M315								*160.0				200.0				250.0		315.0					400.0		500.0		630.0						100.0					50.0	120.0		36.0
M450								200.0				250.0				315.0		400.0					500.0		630.0		800.0						120.0					60.0	140.0		42.0
ISO 链号 ISO Chain No.									内节内宽 Width between inner plates								销轴直径 Pin diameter					销轴长度 Pin length				链板高度 Plate depth		链板厚度 Plate thickness						抗拉强度 Tensile strength						平均抗拉强度 Average tensile strength
									b1 min								d2 max					L max				h2 max		T max						Q min						Q0
									mm								mm					mm				mm		mm						kN/lbf						kN
M20									16.0								6.0					35.0				19.0		2.5						20.0/4545						25.0
M28									18.0								7.0					40.0				21.0		3.0						28.0/6364						35.0
M40									20.0								8.5					45.0				26.0		3.5						40.0/9091						50.0
M56									24.0								10.0					52.0				31.0		4.0						56.0/12727						70.0
M80									28.0								12.0					62.0				36.0		5.0						80.0/18182						100.0
M112									32.0								15.0					73.0				41.0		6.0						112.0/25454						140.0
M160									37.0								18.0					85.0				51.0		7.0						160.0/36364						200.0
M224									43.0								21.0					98.0				62.0		8.0						224.0/50909						280.0
M315									48.0								25.0					112.0				72.0		10.0						315.0/71591						393.7
M450									56.0								30.0					135.0				82.0		12.0						450.0/102272						562.5

In addition to the chain, we also have a full line of M series conveyor chain M20 M28 M40 M56 M80 M112 M160 M224 M315 M450 and sprockets matched with the M series conveyor chain and attachments. To check pricing and availability or for additional information please contact us and we will be happy to assist you.
