Custom Conveyor Chains

Gripper Chain Manufacuter

Min. Order: 100 meters

Model number: gripper chain 08BSSN1; 08BN2; 08BSSN3; 08BN4; 08BN5; 08BN6; 08BGC; 08BSSF32

gripper chain 10B-GC; 10AN1

Certification: ISO90001, SGS, BV

Standard: ANSI/DIN/ISO/BS

Trademark: SMCC or OEM

Material: Stainless Steel304; carbon steel

Application:packaging, food processing, and electronics

Basic Info

Product Description

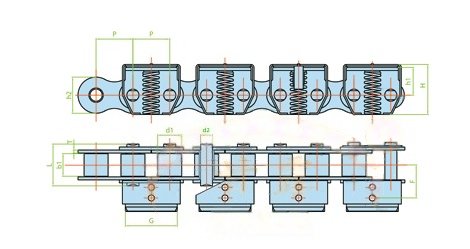

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length	Plate thick-ness	Attachment Dimensions
	P	d₁max	b₁min	d₂max	Lmax	t/T	q	n₁	n₂	H	F
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
08BSSN1	12.70	8.51	7.75	4.45	17.0	1.60	1.14	8.0	11.8	16.5	13.8
08BN2	12.7	8.51	7.75	4.45	17.0	1.6	1.14	8.0	11.8	16.5	13.8

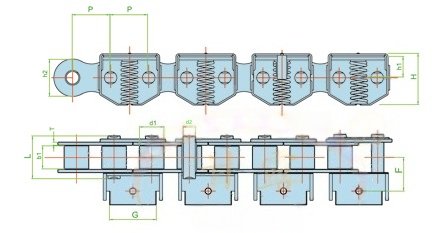

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length	Plate thick-ness	Attachment Dimensions
	P	d₁max	b₁min	d₂max	Lmax	t/T	n₂	H	h₁	F	G
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
08BSSN3	12.70	8.51	7.75	4.45	17.0	1.60	11.8	21.2	7.9	12.6	19.8
08BN4	12.7	8.51	7.75	4.45	17.0	1.6	11.8	21.2	7.9	12.6	19.8

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length	Plate thick-ness	Attachment Dimensions
	P	d₁max	b₁min	d₂max	Lmax	t/T	n₁	n₂	d₃	F
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
08BN5	12.70	8.51	7.75	4.45	17.0	1.60	16	11.8	4.0	15.8
10AN1	15.875	10.16	9.4	5.08	20.5	2	16	15.09	5.0	17.6

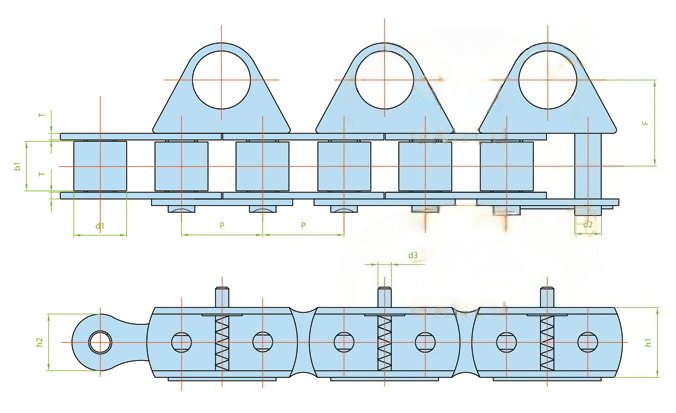

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length	Plate thick-ness	Attachment Dimensions
	P	d₁max	b₁min	d₂max	Lmax	t/T	h₂	d₃	L₁
	mm	mm	mm	mm	mm	mm	mm	mm	mm
08BN6	12.70	8.51	7.75	4.45	17.0	1.60	11.8	4.20	21.5
