Heavy Duty Cranked Link Drive Chain - RO568

Min. Order: 1

Port: Qingdao, China

Production Capacity: 100000PCS/Month

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Application:Heavy Conveying Machinery

Certification: ISO90001, SGS

Trademark: SMCC or OEM

Package: Carton, Pallet, Wooden Box, or According to Customer′s Request

Chain Size: Customized According to Demand

Basic Info

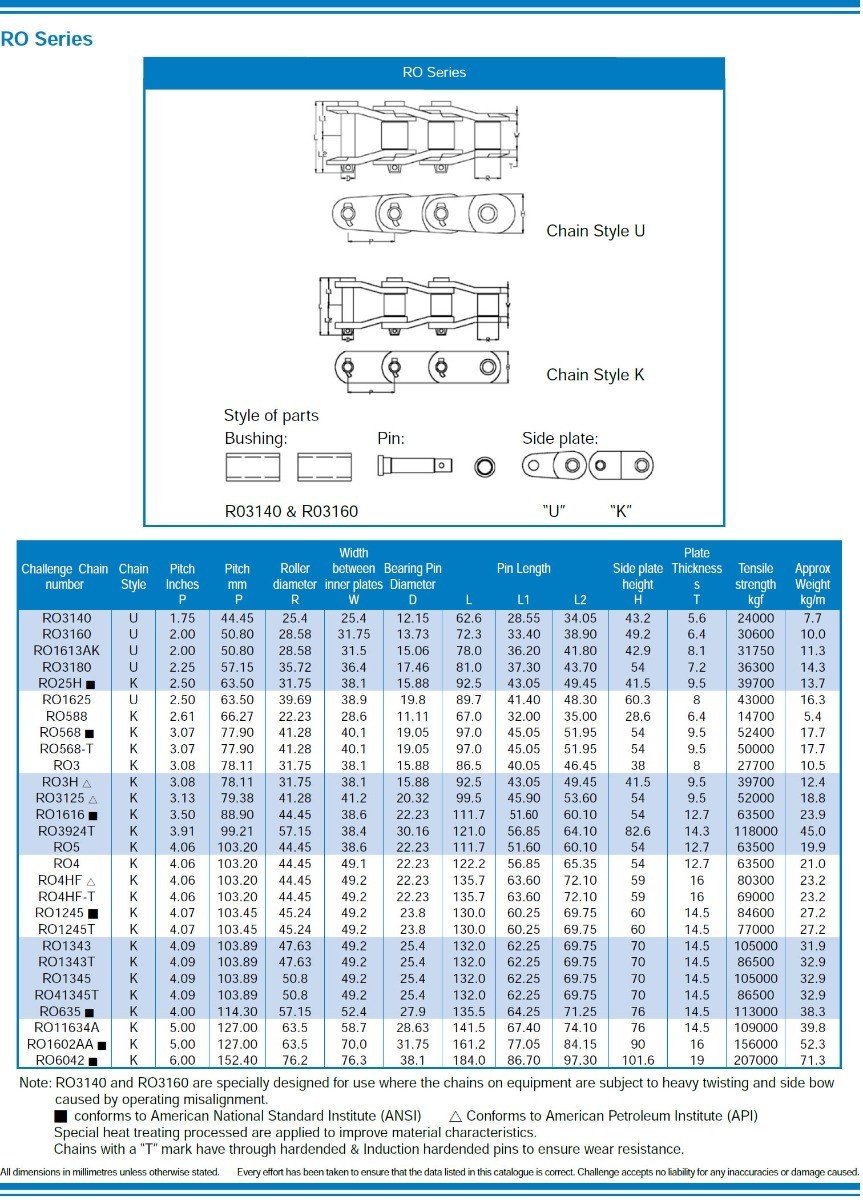

CHAIN NUMBER	RO568
CHAIN STYLE	K
PITCH IN INCHES	3.07
Width Between Inner Plates	40.1
Link Plate Height	54
Link Plate Thickness	9.5
Pin Length	97
Roller Diameter	41.28
Pin Diameter	19.05
Weight - kg/m	17.7
Pin Length (2nd)	45.05
Pin Length (3rd)	51.95
Minimum Tensile Strength - kN	52400

Product Description

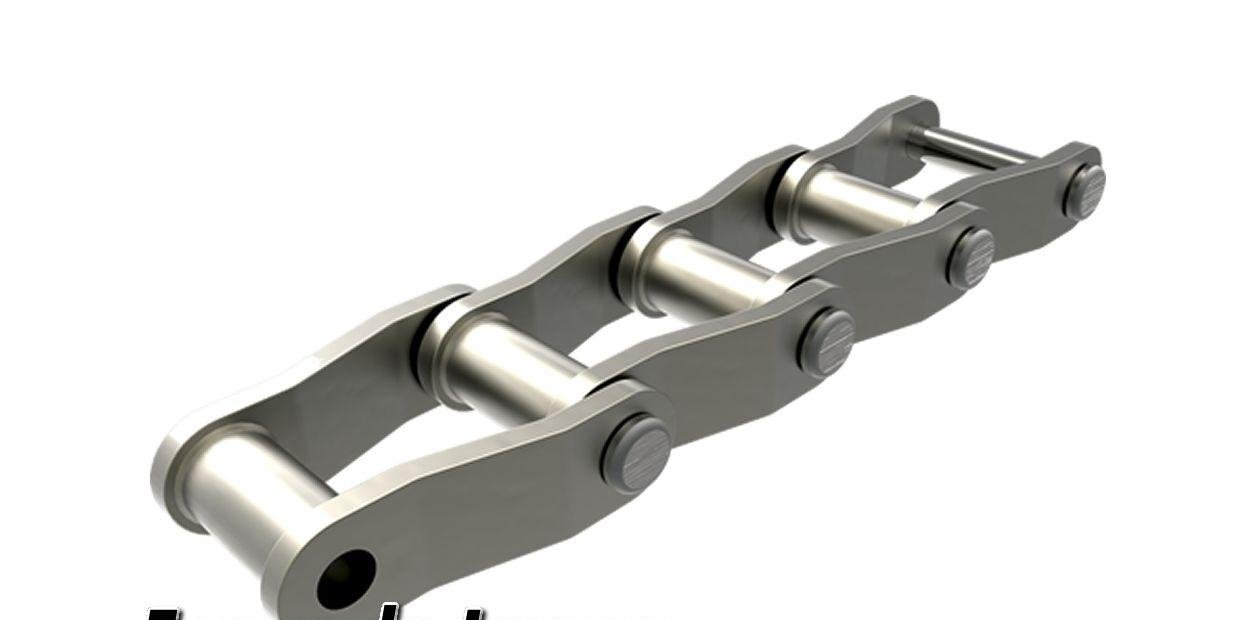

RO Series Heavy Duty Cranked Link Drive Conveyor Chain

Heavy-duty power transmission chains are manufactured from high-grade alloy steels with hardened round parts. These chains are durable, with high strength and a low and even wear rate.
Designed for heavy loading and adverse conditions, they are resistant to shock loading and fatigue. They are often used in the mining and construction industries but have found penetration into other industries due to their enhanced performance. The offset/crank link design allows the chains to be easily lengthened, shortened, or repaired when required.
Designs are available for use where the equipment is subject to heavy twisting and side bows caused by operating misalignment.
