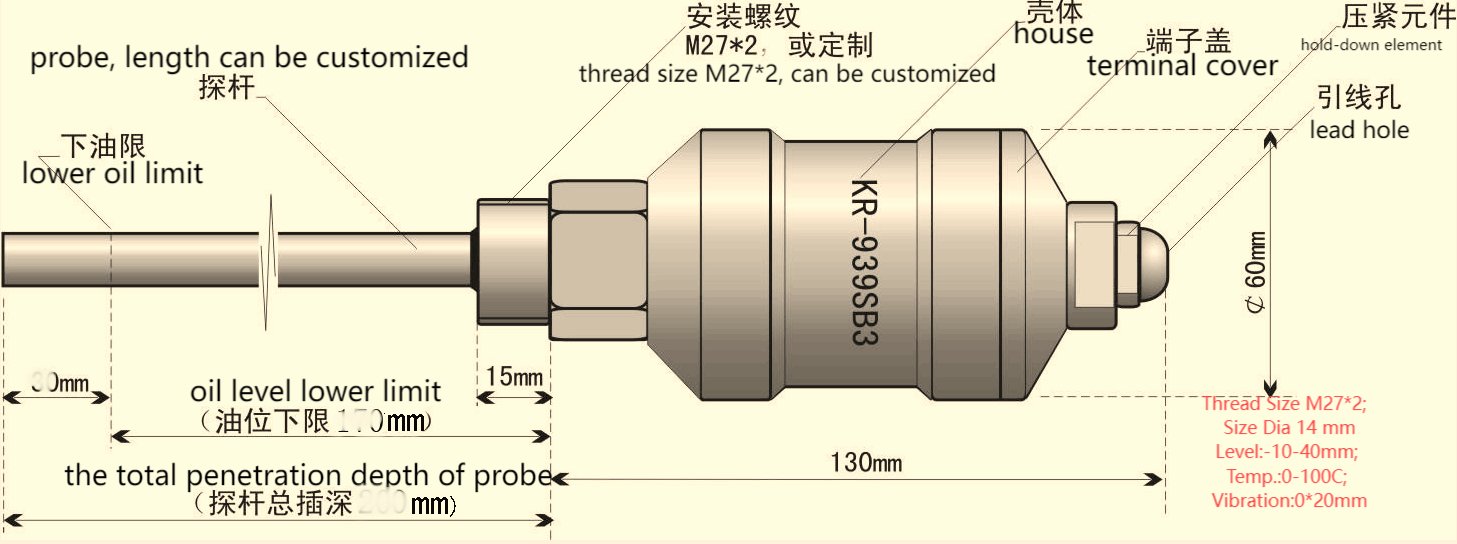

PARAMETERS OF THREE-PARAMETER COMBINED PROBE KR-939SB4
ITEM | PARAMETER | NOTE |
VIBRATION | 0-20MM/S | |
LEVEL | -10-40MM | |
TEMPERATURE | 0-100℃ | |
OUTPUT | 4-20MA | |
SENSOR LENGTH | 130-180MM | CAN BE CUSTOMIZED |
SENSOR DIAMETER | 12-16MM | CAN BE CUSTOMIZED |
CABLE LENGTH | 10 METER | CAN BE CUSTOMIZED |
THREAD SIZE | M27*2 |
1.Temperature measurement characteristics: lubricating oil temperature measurement range: 0100, temperature measurement comprehensive error±3
2.Oil level measurement characteristics: lubricating oil level measurement range: - 1040 ㎜ Comprehensive error of oil level measurement amp; plusmn; 5 ㎜
3.Vibration measurement characteristics: vibration measurement range: 020 ㎜/s, measurement output is proportional to the true effective value (RMS) of vibration speed, vibration measurement frequency band range: 101000 HZ, vibration measurement comprehensive error amp; plusmn; 1 ㎜/s
4.Signal output characteristics: Current output: 420mA
5.Power supply characteristics: DC 24V 6. Environmental characteristics: Ambient temperature range: - 2080, ambient humidity range: 100%
