Basic Info

The compact pulse valve for the Optipulse fabric filters of different types.
is a result of many years of experiences within the fabric filter technology area.
is quick acting with high efficiency.
has small dimensions, the figure after the name stands fir the diameter of the plunger.
is primarily designed to be used in combination with circular pressure tank.
is easy to install and make service to.
has a very robust design, designed for normal use at air pressure up to 600kPa (6bar).
Normal max operating temperature (compact pulse valve) 50°C.

datasheet of Alstom optipow pulse valve


Product Description

Optipow Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse Valve,Pulse Jet Collector,Jet Pulse Filter,Pulse Jet Valve,Directly from China Manufacturer,A Professional optipow solenoid valve manufacturer, the service life can reach 1,000,000 times. Low temperature resistance -60 ° C and high temperature 150 ° C. Widely used in thermal power plant air purification and dust removal, glass factory dust removal, laboratory dust removal, and other industrial dust removal. We have a sales system and after-sales service system all over the world. Our goal is to continuously improve quality and continuously reduce costs, till customer satisfaction.

Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd. Low loss of compressed air: the OPTIPOW pulse valve reduces the amount of compressed air consumption compared to diaphragm type.

Compact size: OPTIPOW pulse is much smaller than the diaphragm valve shape the pulse valve shape, which means that the bag spacing not is restricted by the size of valve, only the process parameters (gas Bubbe, without filter, fly ash type and concentration) determines the bag size, two OPTIPOW pulse valve * * * short distance you can go to 160mm.

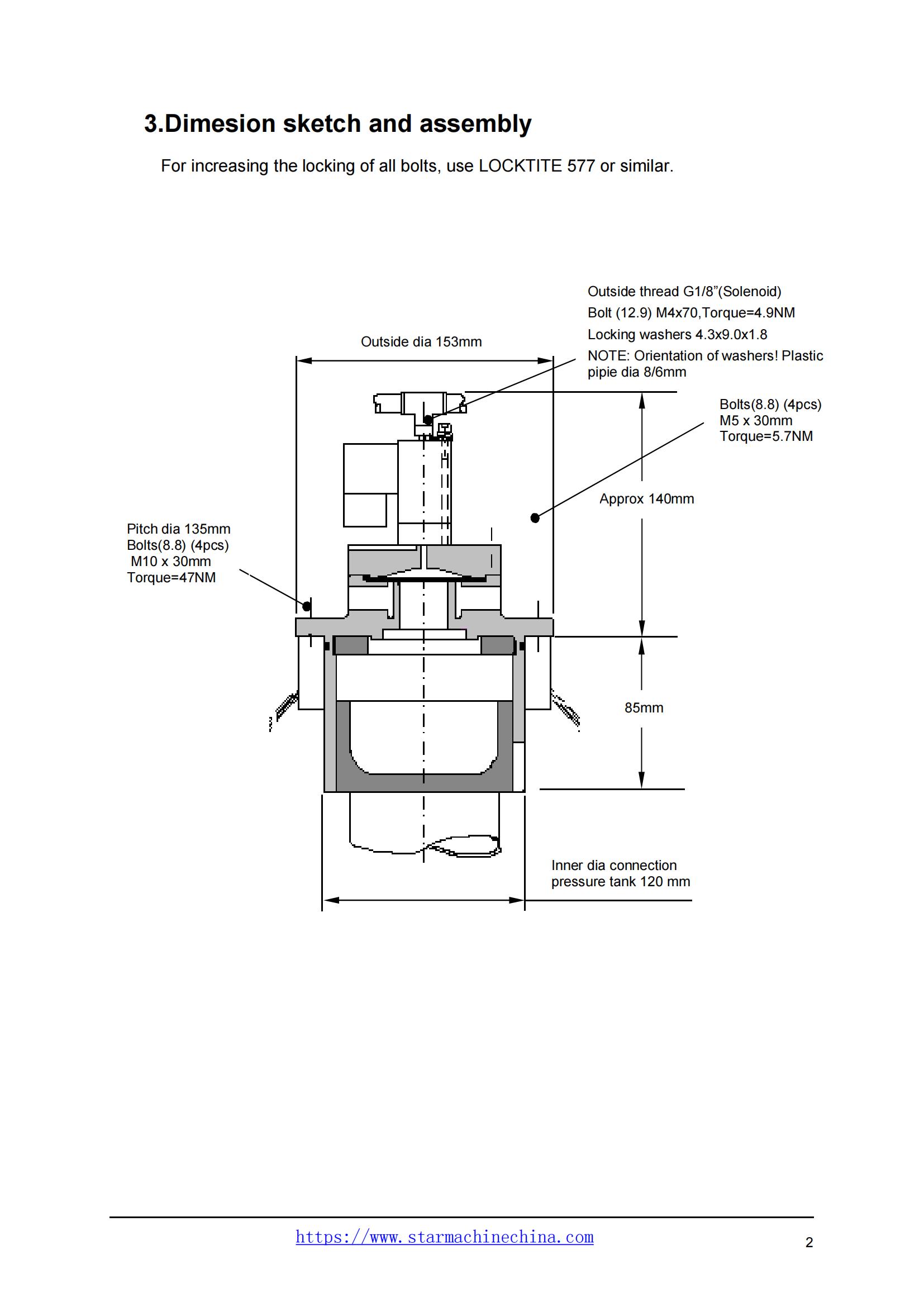

DIMESION SKETCH OF PULSE VALVE 105_00


Optipow piston type pulse valve OPTIPOW105

Piston diameter 105mm

The number of filter bags: 30

Length of filter bag: 10M

Plunger Pulse Solenoid Valve Optipow 105


Piston type pulse valve V1585320

Piston type pulse valve V3630501

OPTIPOW 105 (24 VDC ) V1617803-0100

OPTIPOW 105 (110V 60 Hz, 100V 50/60Hz) V1617803-0200

OPTIPOW 105 (110V, 50 Hz) V1617803-0300

OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400

OPTIPOW 105 (220V, 50 Hz) V1617803-0500

OPTIPOW 105 (UR-CERTIFIED 120V,60HZ) V1617803-0600

OPTIPOW 105 (without solenoid, revolving 90° C) V1617803-0800 -

Coupling set V3592382-0000

Membrane V4549902-0100

O-Ring (Fluor rubber 64,5 x 3) 8003-5573

O-Ring (Nitril 70SH 64,5 x 3) 2136-1422

O-Ring (114,5 x 3) 2136-1435

Pilot cover V3630501-0100

Plate V3630524-0100

Plunger V3630527-0100

Round washer (SS3576-10-200HV FE/ZN45 Erection details) 4903-2173

Rubber disc V3630530-0100

Rubber disc V3640661-0100

Screw (ISO4762-M10x30-8.8 ZN8C, Erection details) 2034-2495

Solenoid valve (24 V DC) V3611471-0100

Solenoid valve (100 V, 60 Hz) V3611471-0201

Solenoid valve (110 V, 50 Hz) V3611471-0300

Solenoid valve (110 V, 60 Hz) V3611471-0200

Solenoid valve (120 V, 60 Hz) V3611471-0400

Solenoid valve (120 V, 60 Hz - UL certified) V3640645-0200

Solenoid valve (230 V, 50 Hz) V3611471-0500




WHY CHOOSE US

1. Reliable Quality Assurance System;

2. Cutting-Edge Computer-Controlled CNC Machines;

3. Bespoke Solutions from Highly Experienced Specialists;

4. Customization and OEM Available for Specific Application;

5. Extensive Inventory of Spare Parts and Accessories;

6. Well-Developed Worldwide Marketing Network;

7. Efficient After-Sale Service System

Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd. Founded in 1997, Located in Qingdao, China. Qingdao Star Machine Technology Co., Ltd. Is a high-tech enterprise specialized in researching & development, manufacturing and sales of industrial roller chains and sprockets and other conveyor accessories, alstom optipow plunger pulse diaphragm solenoid valve and accessories.
