OPTIPOW VALVE INTRODUCTION
The compact pulse valve for the Optipulse fabric filters of different types.
is a result of many years of experiences within the fabric filter technology area.
is quick acting with high efficiency.
has small dimensions, the figure after the name stands fir the diameter of the plunger.
is primarily designed to be used in combination with circular pressure tank.
is easy to install and make service to.
has a very robust design, designed for normal use at air pressure up to 600kPa (6bar).
Normal max operating temperature (compact pulse valve) 50°C.
OPTIPOW SPECIFICATION AND SPARE PARTS LIST
Air Filter OPTIPOW105
Piston type pulse valve V1585320
Piston type pulse valve V3630501
OPTIPOW 105 (24 VDC ) V1617803-0100
OPTIPOW 105 (110V 60 Hz, 100V 50/60Hz) V1617803-0200
OPTIPOW 105 (110V, 50 Hz) V1617803-0300
OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400
OPTIPOW 105 (220V, 50 Hz) V1617803-0500
OPTIPOW 105 (UR-CERTIFIED 120V,60HZ) V1617803-0600
OPTIPOW 105 (without solenoid, revolving 90° C) V1617803-0800 -
Coupling set V3592382-0000 -
Membrane V4549902-0100 (2)
O-Ring (Fluor rubber 64,5 x 3) 8003-5573 (3)
O-Ring (Nitril 70SH 64,5 x 3) 2136-1422 (3)
O-Ring (114,5 x 3) 2136-1435 (4)
Pilot cover V3630501-0100 (5)
Plate V3630524-0100 (6)
Plunger V3630527-0100 (7)
Round washer (SS3576-10-200HV FE/ZN45 Erection details) 4903-2173 -
Rubber disc V3630530-0100 (8)
Rubber disc V3640661-0100 (8)
Screw (ISO4762-M10x30-8.8 ZN8C, Erection details) 2034-2495 -
Solenoid valve (24 V DC) V3611471-0100 (9)
Solenoid valve (100 V, 60 Hz) V3611471-0201 (9)
Solenoid valve (110 V, 50 Hz) V3611471-0300 (9)
Solenoid valve (110 V, 60 Hz) V3611471-0200 (9)
Solenoid valve (120 V, 60 Hz) V3611471-0400 (9)
Solenoid valve (120 V, 60 Hz - UL certified) V3640645-0200 (9)
Solenoid valve (230 V, 50 Hz) V3611471-0500 (9)
WHY CHOOSE US
1. Reliable Quality Assurance System;

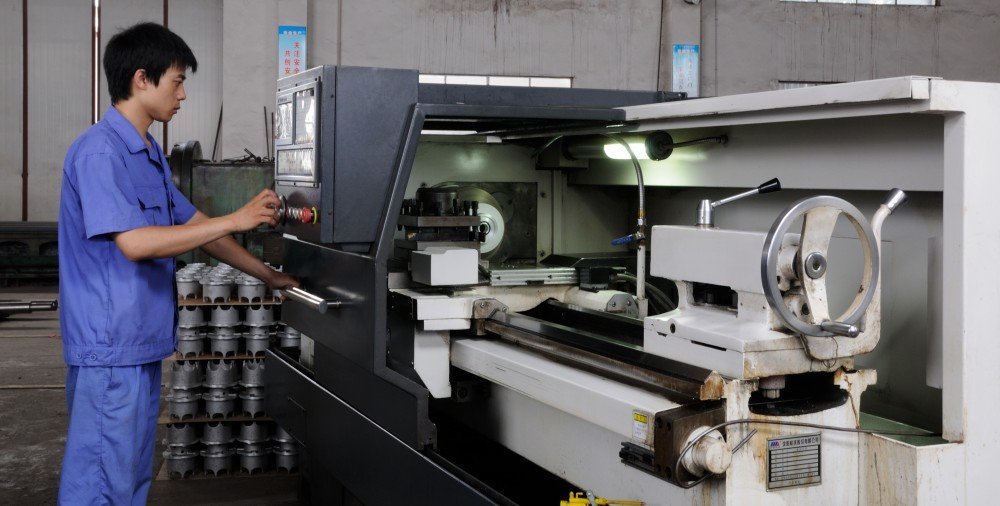

2. Cutting-Edge Computer-Controlled CNC Machines;
3. Bespoke Solutions from Highly Experienced Specialists;
4. Customization and OEM Available for Specific Application;
5. Extensive Inventory of Spare Parts and Accessories;
6. Well-Developed Worldwide Marketing Network;
7. Efficient After-Sale Service System
The OPTIPOW Air Cleaning valve service life can reach 1,000,000 times. Low temperature resistance -60 ° C and high temperature 150 ° C. Widely used in thermal power plant air purification and dust removal, glass factory dust removal, laboratory dust removal, and other industrial dust removal. We have a sales system and after-sales service system all over the world. Our goal is to continuously improve quality and continuously reduce costs, till customer satisfaction.
We have a global sales network and service system of OPTIPOW air cleaning valve. There are more than 150 distributors and business cooperative partners in more than 30 countries, including Vietnam, Korea, Thailand, Bangladesh, Singapore, Philippines, Malaysia, Russia, Kazakhstan, Uzbekistan, Ukraine, Iran, Saudi Arabia, Chile, Brazil, Canada, the United States, Mexico, Poland and other countries. "Honesty, efficiency, coordination, innovation" is our corporate culture. "First class quality, reasonable price and timely service" is is our company's unremitting pursuit.
