ALSTOM OPTIPOW AIR DUST COLLECTOR BASIC INFO

Model NO.

OPTIPOW 135

Valve Structure

Pilot Membrane Structure

Power Supply

DC Solenoid Valve

Usage

Drain, Dust Cleaning

Standard

DIN

Application

Industrial Usage

Used For

Dust Filter

Trademark

OPTIPOW

Specification

4"

Design static pressure

15 bar (1500 kPa)

Design temperature

100 °C

Operating pressure

< 6 bar

Operating pressure variation

3 bar unlimited nos

Operation temperature

50 °C

OPTIPOW AIR DUST COLLECTOR INTRODUCTION

The compact pulse valve for the Optipulse fabric filters of different types.
is a result of many years of experiences within the fabric filter technology area.
is quick acting with high efficiency.
has small dimensions, the figure after the name stands fir the diameter of the plunger.
is primarily designed to be used in combination with circular pressure tank.
is easy to install and make service to.
has a very robust design, designed for normal use at air pressure up to 600kPa (6bar).

Normal max operating temperature (compact pulse valve) 50°C.



Product Description

Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd. A Professional optipow 135 solenoid valve manufacturer, the service life can reach 1,000,000 times. Low temperature resistance -60 ° C and high temperature 150 ° C. Widely used in thermal power plant air purification and dust removal, glass factory dust removal, laboratory dust removal, and other industrial dust removal. We have a sales system and after-sales service system all over the world. Our goal is to continuously improve quality and continuously reduce costs, till customer satisfaction. Low loss of compressed air: the OPTIPOW pulse valve reduces the amount of compressed air consumption compared to diaphragm type. Compact size: OPTIPOW pulse is much smaller than the diaphragm valve shape the pulse valve shape, which means that the bag spacing not is restricted by the size of valve, only the process parameters (gas Bubbe, without filter, fly ash type and concentration) determines the bag size, two OPTIPOW pulse valve short distance you can go to 160mm.

OPTIPOW pulse valve has two specifications: 105, the number represents the diameter of the piston.

piston type pulse valve OPTIPOW
 model OPTIPOW piston pulse cleaning valve

Piston type pulse valve V1585320

Piston type pulse valve V3630501

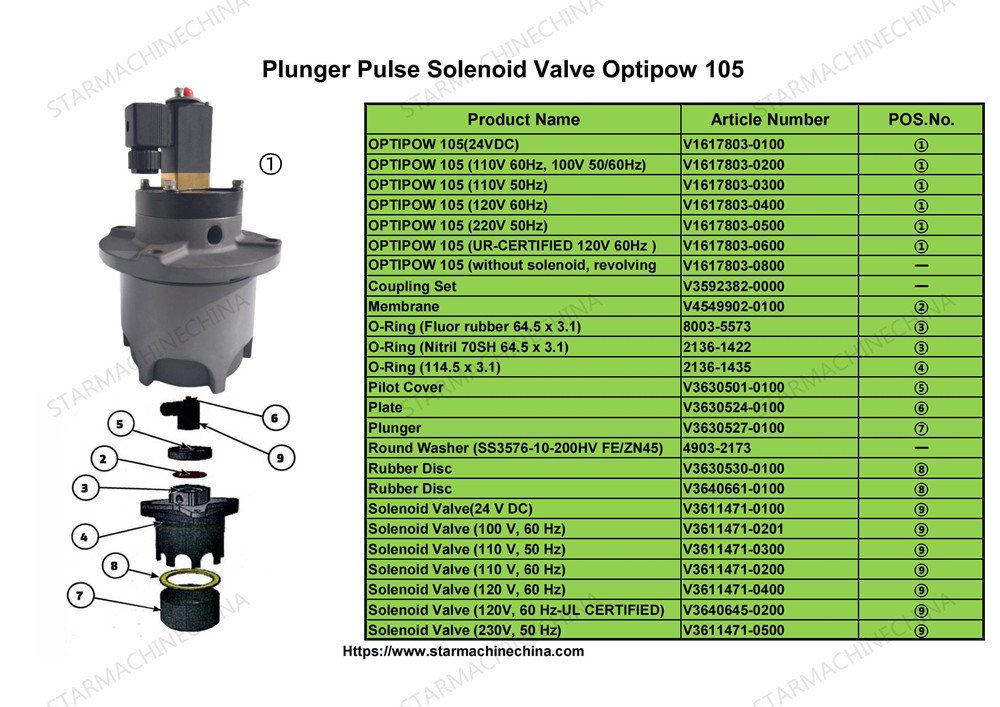

OPTIPOW 105 (24 VDC ) V1617803-0100

OPTIPOW 105 (110V 60 Hz, 100V 50/60Hz) V1617803-0200 [1]

OPTIPOW 105 (110V, 50 Hz) V1617803-0300 [1]

OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400 [1]

OPTIPOW 105 (220V, 50 Hz) V1617803-0500 [1]

OPTIPOW 105 (UR-CERTIFIED 120V,60HZ) V1617803-0600 [1]

OPTIPOW 105 (without solenoid, revolving 90° C) V1617803-0800 -

Coupling set V3592382-0000 -

Membrane V4549902-0100 (2)

O-Ring (Fluor rubber 64,5 x 3) 8003-5573 (3)

O-Ring (Nitril 70SH 64,5 x 3) 2136-1422 (3)

O-Ring (114,5 x 3) 2136-1435 (4)

Pilot cover V3630501-0100 (5)

Plate V3630524-0100 (6)

Plunger V3630527-0100 (7)

Round washer (SS3576-10-200HV FE/ZN45 Erection details) 4903-2173 -

Rubber disc V3630530-0100 (8)

Rubber disc V3640661-0100 (8)

Screw (ISO4762-M10x30-8.8 ZN8C, Erection details) 2034-2495 -

Solenoid valve (24 V DC) V3611471-0100 (9)

Solenoid valve (100 V, 60 Hz) V3611471-0201 (9)

Solenoid valve (110 V, 50 Hz) V3611471-0300 (9)

Solenoid valve (110 V, 60 Hz) V3611471-0200 (9)

Solenoid valve (120 V, 60 Hz) V3611471-0400 (9)

Solenoid valve (120 V, 60 Hz - UL certified) V3640645-0200 (9)

Solenoid valve (230 V, 50 Hz) V3611471-0500 (9)

 Solenoid valve (120 V, 60 Hz-UL CERTIFIE ALSTOM's new OPTIPOW compact piston pulse cleaning valve ALSTOM's OPTIPOW new compact piston pulse cleaning valve is mainly used for bag cleaning and installation on a round drum.

Low loss of compressed air: The OPTIPOW pulse valve reduces the amount of compressed air consumed compared to the diaphragm type
