As a critical component in the field of transmission chains, the tooth chain excels in high-speed, heavy-load, and large center distance applications due to its core characteristics of high reliability, low noise, and superior motion precision. It outperforms toothed belt drives, gear drives, and roller chain drives, becoming the preferred transmission solution across multiple industries including automotive and machinery manufacturing. This advancement drives performance upgrades in related equipment.
Toothed Chain Structural Design

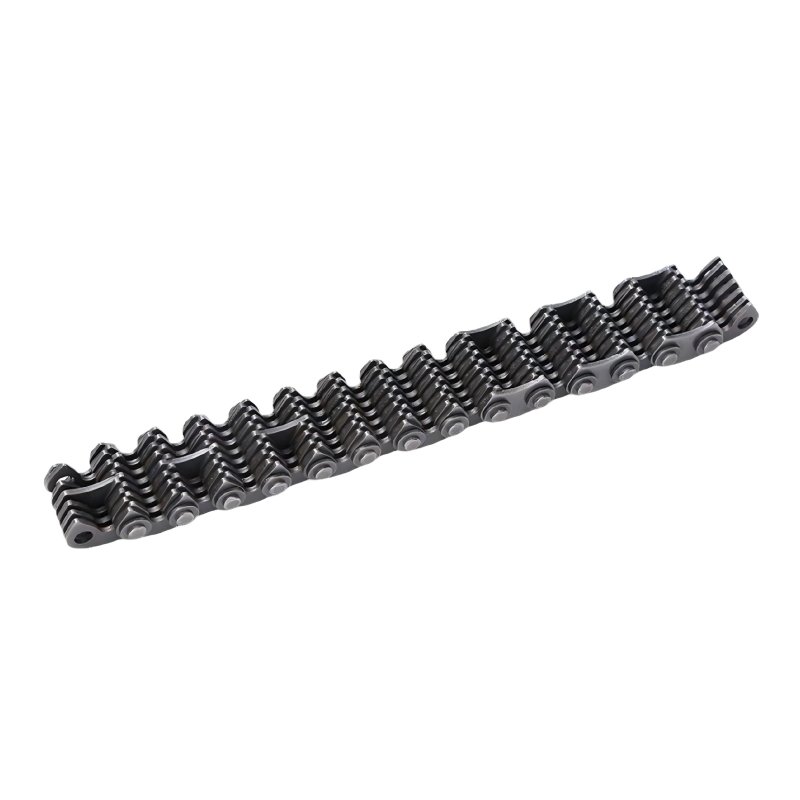

Also known as silent chains, toothed chains are a type of transmission chain. Their fundamental structure consists of alternating toothed chain plates and guide plates connected by pins or combined hinge elements, with adjacent pitch sections forming hinged links. The working surface of the chain plates is typically flat, featuring a 60° angle that meshes with the profile plane of the sprocket teeth. The 30° tooth angle on the chain plates prevents lateral movement.
Core Characteristics: The Foundation of Superior Performance
Compared to roller chains and sleeve chains, tooth chains demonstrate significant advantages in transmission performance, primarily manifested in three aspects: transmission smoothness, motion precision, and operational reliability.
Toothed chains operate with minimal noise. Their plates engage with sprockets via involute tooth profiles, effectively reducing polygon effects while minimizing impact and vibration. This makes them ideal for noise-sensitive environments. They offer distinct application advantages in automotive engines, residential equipment, and precision machine tools.
Toothed chains deliver high motion precision. Uniform wear and elongation across all links prevent the pitch inconsistencies caused by hinge wear in roller chains, ensuring long-term maintenance of a constant transmission ratio. This makes them suitable for closed-loop transmission systems demanding high motion synchronization, such as engine timing drives and machine tool spindle drives.
Toothed chains offer high reliability through a multi-plate design. Failure of a single plate does not immediately cause chain failure, facilitating timely detection and replacement to reduce unexpected downtime risks. Chain plates are forged from specialized steel strips and undergo special heat treatment to achieve a”hard exterior, soft interior”structure. This provides high surface hardness and wear resistance, while the core maintains excellent toughness and impact resistance. The chain remains deformation-free and slip-free under high-temperature and heavy-load conditions.
Toothed Chain Classification and Application Scenarios: Adapting to Diverse Industrial Demands
Toothed chains have evolved into multiple types based on structural and meshing variations, catering to transmission requirements across different operating conditions.
External Contact Toothed Chain: Engages with sprockets via outer tooth profiles, offering stable structure for general high-speed transmission.
Internal Contact Toothed Chain: Utilizes inner tooth profiles for smoother transmission, suitable for low-noise, high-precision applications.

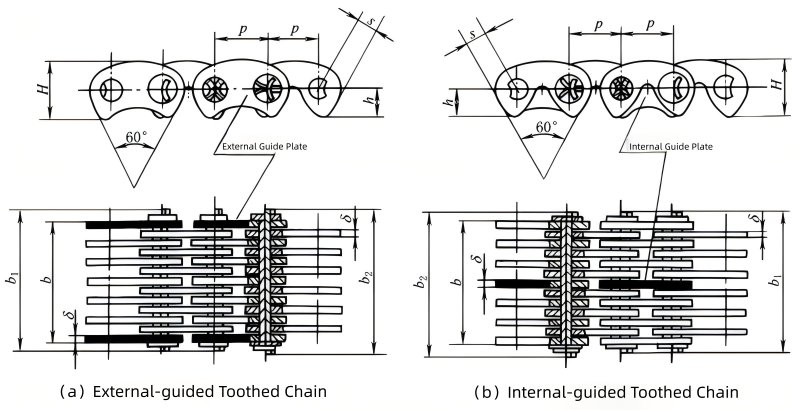

External Guide and Internal Guide Structures: Employ side plates or central guide plates for alignment, with the latter providing higher guidance precision and reduced wear.
As a vital mechanical component, the application scope of toothed chains continues to expand. Within the automotive industry, they are ubiquitous in core components such as engine timing systems, oil pumps, high-pressure pumps, and transmissions. Simultaneously, toothed chains play a critical role in high-speed transmission systems for motorcycles, forklifts, aircraft, ships, rolling mills, machine tools, and various industrial pumps. With technological advancements, new high-speed tooth-shaped chain product series designed to meet the “customized” demands of host machines are continuously emerging, driving technological progress in related industries.
Maintenance and Troubleshooting Guide
In continuous production environments, such as glass rolling mill transmission systems, the long-term stable operation of tooth-shaped chains relies on proper maintenance. Common failure modes include wear failure, fatigue failure, overload breakage, and chain elongation. To effectively prevent failures, regularly inspect and ensure the lubrication system functions properly, promptly replacing lubricants containing abrasive particles. For sprockets with minor wear, reverse installation can utilize the less-worn side. Selecting chain plates made of high-quality materials with proper heat treatment (achieving a hard outer layer and soft inner core), along with reinforced designs such as flat shafts, are fundamental measures to enhance chain wear resistance and fatigue life while reducing the risk of shaft breakage.
Conclusion
With its unique performance advantages, tooth-shaped chain technology holds an irreplaceable position in modern industrial transmission applications demanding high speed, heavy loads, low noise, and high precision. Driven by continuous advancements in materials science and manufacturing processes, tooth-shaped chains will continue evolving toward greater efficiency, reliability, and quietness, providing robust support for the development of high-end equipment manufacturing.
