Chain drive, as a mechanical power transmission system, is widely used across various fields ranging from bicycles and automobile engines to industrial conveyor systems. It achieves power transfer through the meshing of chains and sprockets, featuring precise transmission ratios, high load-bearing capacity, and adaptability to harsh environments. This article systematically outlines the work principles, primary types, and advantages and disadvantages of chain drives, providing reference for engineering design and application.
I. Definition and Working Principle of Chain Drives
Chain drive is a mechanical system that transmits power through the meshing of a chain with sprocket teeth. Comprising a drive sprocket, driven sprocket, and a closed-loop chain, it primarily facilitates motion and power transfer between parallel shafts. Its operational mechanism is as follows: when the prime mover drives the drive sprocket to rotate, the meshing action between the chain and sprocket teeth transfers mechanical force to the driven sprocket, thereby driving the driven shaft and completing the power transmission process.

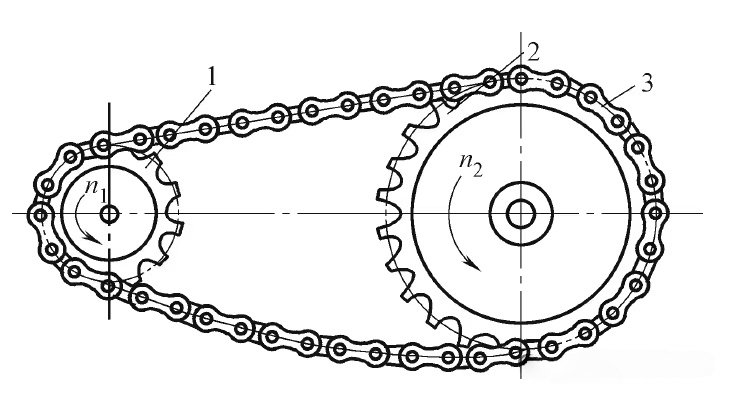

1-Drive sprocket 2-Driven sprocket 3-Closed-Loop Chain
As one of the five major mechanical power transmission methods, chain drive is adaptable to both short-distance and long-distance transmission scenarios. Compared to couplings, gear drives, belt drives, and power screws, its main advantage lies in its zero-slip characteristic, maintaining a constant speed ratio with no power transmission lag and achieving significant mechanical efficiency.
II. Core Types and Application Scenarios of Chain Drives
Based on function and application, chain drives are primarily categorized into three major types: power transmission chains, conveyor chains, and lifting and traction chains.
(1) Power Transmission Chains
Power transmission chains are specifically designed for power transfer between two shafts, representing the most commonly used chain type in industrial equipment. Typical examples include:

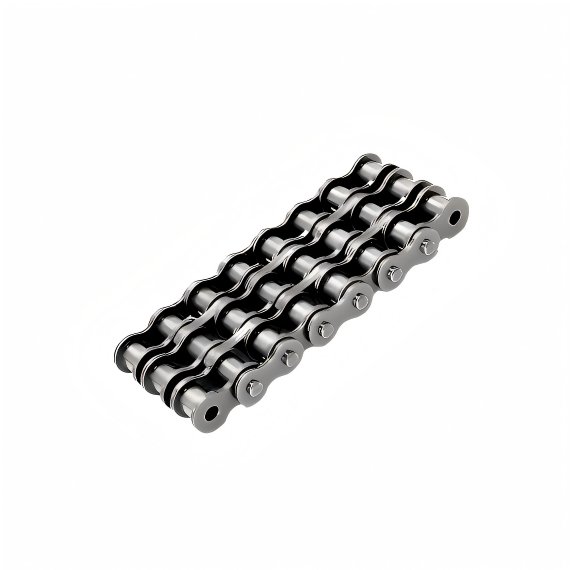

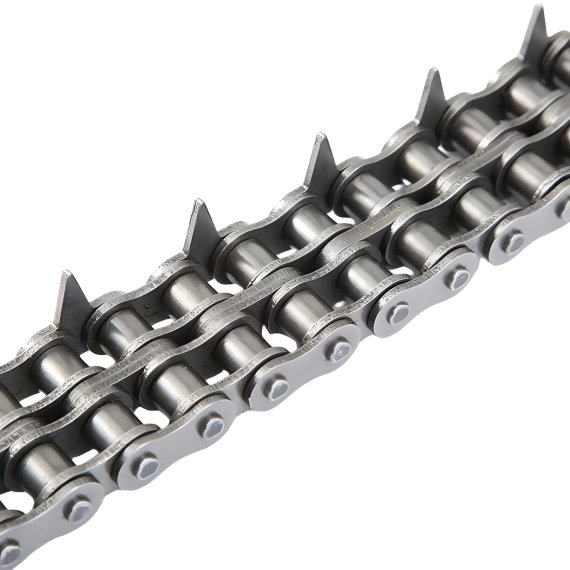

Roller Chain (Bushing Roller Chain): One of the most widely used transmission chains, composed of inner plates, outer plates, pins, bushings, and rollers. It features a simple structure, controllable cost, and easy maintenance, making it suitable for harsh conditions such as dusty or oily environments. It is extensively used in bicycles, motorcycles, agricultural machinery, CNC machine tools, mining equipment, and other medium-to-low speed, heavy-load applications. Multi-strand roller chains meet higher power transmission demands, suitable for low-speed applications with small pitch requirements.
Toothed Chain (Silent Chain/Reverse Tooth Chain): Constructed from multiple rows of flat plates connected by pins, each chain link has a profile on its underside that meshes with sprocket teeth. This design ensures smoother transmission and lower noise levels, making it suitable for noise-sensitive environments like mines and residential areas. Its load capacity increases with the number of plates, while tensile strength and width also enhance, making it ideal for high-speed, high-power transmission scenarios.
(2) Conveyor Chain

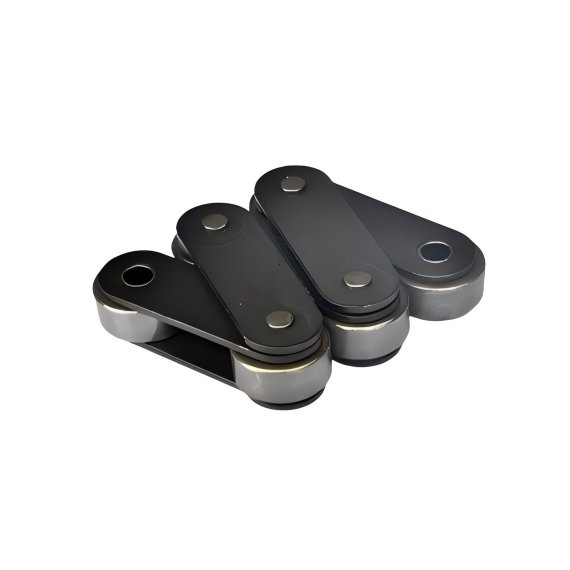

Conveyor chains prioritize material transport functionality with diverse designs. They feature low friction, high-temperature resistance, chemical corrosion resistance, anti-static properties, and magnetism. Accessories can be added to adapt to various conveying needs. Applications span packaging, automotive manufacturing, food and beverage production, pharmaceuticals, textiles, and more. Some flat-top conveyor chains enable lateral bending for curved conveying scenarios, commonly used in low-speed assembly line material transport.
(3) Lifting and Traction Chain
Lifting and traction chains primarily handle heavy-duty lifting and towing tasks, commonly found in chain hoists and manual chain blocks. They can lift loads up to 20 tons in garages, workshops, construction sites, and ship engine rooms. These chains fall into two categories:
Elliptical Chain (Coil Chain): Features elliptical links formed through interlocking welds, suitable for medium-to-low load, low-speed lifting applications;
Stud Chain: Incorporates internal bolts to prevent twisting, offering superior strength and durability for heavy-duty uses like ship anchors and heavy lifting machinery.
Additionally, leaf chains and engineering steel chains serve as specialized variants. Leaf chains are used in lifting and balancing applications like elevators and forklifts, while engineering steel chains handle material transport and power transmission in harsh environments such as bucket elevators and oil drilling rigs.
III. Technical Characteristics and Analysis of Chain Drive Advantages and Disadvantages
(1)Advantages
High transmission accuracy: Eliminates elastic slippage and slippage phenomena, ensuring precise average transmission ratios. Suitable for applications demanding stringent accuracy, such as internal combustion engine timing chains.
Wide adaptability:Enables long-distance power transmission with flexible adjustment of shaft spacing. Supports multi-shaft drive via single-chain transmission for compact structures.
Strong Environmental Adaptability: Operates reliably in harsh conditions including high temperatures, dust, humidity, and corrosive environments, with outstanding overload capacity;
High Mechanical Efficiency: Minimal friction loss, low energy dissipation during power transmission, and high operational reliability.
(2) Limitations
Limited application scenarios: Suitable only for parallel shaft transmission; cannot accommodate non-parallel shafts or high-speed reverse transmission requirements;
Inadequate operational characteristics: Poor transmission smoothness; prone to vibration, impact, and noise during operation; certain types require enclosures for noise reduction;
Specific maintenance requirements: Higher costs than some transmission methods, prone to wear and elongation. Most designs require periodic lubrication and stability maintenance through center distance adjustment or tensioner wheels.
V. Industry Application Context and Development Outlook
Since its inception, chain drive technology has become an indispensable component of the mechanical industry. Its structural reliability and environmental adaptability ensure sustained demand across agriculture, manufacturing, transportation, and other sectors. Driven by industrial automation and precision manufacturing, demands for higher speeds, quieter operation, and extended lifespans continue to rise. This has spurred continuous optimization in material processes and structural design for core products like roller chains and tooth-shaped chains. Moving forward, chain drive products tailored for extreme conditions, low maintenance costs, and high transmission efficiency will become key R&D and application focuses, supporting the upgrade and iteration of diverse mechanical systems.
